| Brand Name : | AVATA |
| Model Number : | 94104HP+94209-1 |
| Certification : | CE/FCC/RED/ROHS/ISO9001 |
| Price : | $100-$150/set |
| Payment Terms : | T/T, Western Union, MoneyGram,paypal, L/C |
| Supply Ability : | 40000 PCS/Month |
| Delivery Time : | 15-30 days |

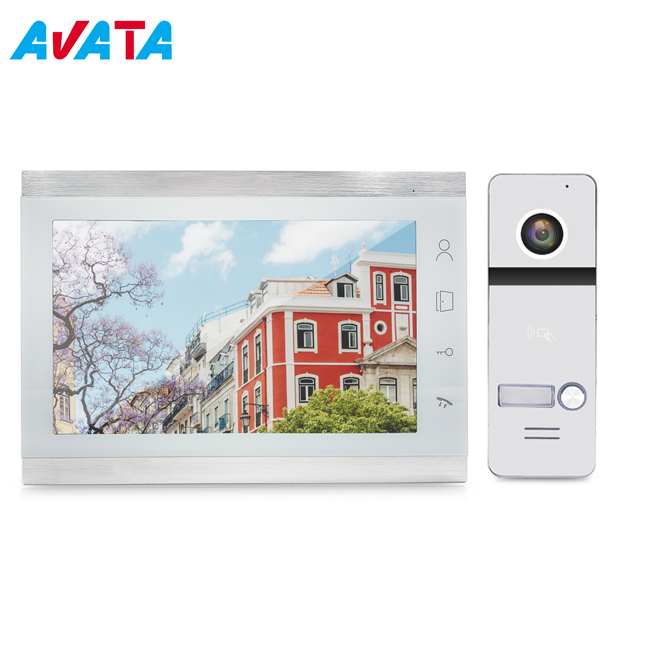

Video Door Phone Commax Type Video Doorphone with Built-in Motion Detection
Indoor Monitor | Product Type | AHD 1080P /960P/1080P/CVI/TVI/AHD/CVBS video input |
| Material | Metal | |
| Monitor | 10 Inch TFT Intercom | |
| Resolution | 1024(RGB)×600(V) | |
| Standard | PAL/NTSC | |
| Calling Mode | Two-way Intercom | |
| Stanby Current | Maximum 250MA | |
| Work Current | Maximum 600MA | |
| Power Supply | External power DC12V;Built in power AC100-240V | |
| Work Temperature | 0~+50ºC | |
| Installation Way | Surface Mounting | |
| SD Card Max Capacity | 128GB Class 10TF (Micro SD ) Note: Must be use ≥Class10 | |
| Input Video Signal | CVBS/AHD | |
| Motion detection | Yes , inner motion detection For 2 Camera , 2Call Panel work at the same time, also support PIR sensor for external motion detection | |
| System | Support 6 indoor monitor + 2 call panel + 2 Camera | |
| Function | Unlocking/Monitoring/Internal calling/Transfer calling /Recording | |
| Advantage | With Photo Frame/MP3 &MP4 player/Clock & Voice message /backgroud Music | |
Outdoor Bell | Product Type | FHD 1080P video input |
| Camera | 1/2.7''CMOS,2.0MP,AHD1080P | |
| View Angle | 160° | |
| Dimension | 133x48x21mm | |
| lEDS for night | IR LEDs(120°) | |
| Power consumption | 200mA max.(10V-13V DC) | |
| Power Supply | Supplied from Indoor monitor | |
| Work Temperature | -40~+60ºC | |
| Waterproof Rate | IP65 | |
| Function | Unlocking/can be connect to Exit button |
FAQ
1.Is It possible support CVBS Video door phone ?
A:Yes ! can be work with 1AHD Call panel +1CVBS call panel +1AHD
camera +1 CVBS panel
2. Do you have motion detection for video intercom?
A: Yes ! It´s by software , no need connect with PIR Sensor ,motion
detection from 1 call panel or 2 camera
3:How to play Music or Movies by indoor monitor ?
A:Download music or Movies from computer------Copy to the SD card
------ inside SD card to the monitor -----Play
4:What is Voice messgae ?
A: When you not at home , but your visitor pressing the call panel
, after 30s or 120S , call panel will Auto say:Please leave a
message , so that when you come back home can check video from
indoor monitor who is come to you and in what time .
5:Please explain transfer calling how to work with Video door bell?
A: First our system are suppory connect 6 indoor monitor , When
visitor press the call panel , Alina is answer the call , but
visitor is looking for Mom , and mom at other room (No5 monitor ),
So Alina can be choose No5 transfer call to Mom
6: Why 7 inch monitor resolution is 1024*600 , other company only
800*480 ?
A: Because we are doing different with market , In order to help
our customer have Competitive advantage , win the market !
7: Warranty
A:24 months warranty
8: Warmly weclome to visit our factory
